Validation: Laplace Solver in 2D Solid Medium

Introduction

This tutorial introduces laplace solver that can operate in either steady-state or transient mode, and supports both constant material properties across the domain (Uniform) and spatially varying properties (NonUniform).

The example simulation below consist of a simple 2D square domain with two Dirichlet walls and two Neumann 0 flux walls. It is expected to produce a diagonal line of constant value when solving laplace/heat equation.

Mesh

The mesh used in this tutorial is a structured 2D grid (the mesh files laplace_2d_mesh.unv or finer_mesh_laplace.unv can be found in the examples directory). The mesh represents a rectangular region with four boundaries:

• :left_wall
• :right_wall
• :bottom_wall
• :upper_wall

Boundary Conditions

Simulation Setup File

using XCALibre

grids_dir = pkgdir(XCALibre, "examples/0_GRIDS")
grid = "laplace_2d_mesh.unv"
mesh_file = joinpath(grids_dir, grid)
mesh = UNV2D_mesh(mesh_file, scale=0.001)

backend = CPU(); workgroup = 1024; activate_multithread(backend)
hardware = Hardware(backend=backend, workgroup=workgroup)
mesh_dev = adapt(backend, mesh)

model = Physics(
    time = Steady(),
    solid = Solid{Uniform}(k=10.0),
    energy = Energy{Conduction}(),
    domain = mesh_dev
)

left_wall_temp = 0.0
bottom_wall_temp = 1.0

BCs = assign(
    region = mesh_dev,
    (
        T = [
            Dirichlet(:left_wall, left_wall_temp),
            Zerogradient(:right_wall),
            Dirichlet(:bottom_wall, bottom_wall_temp),
            Zerogradient(:upper_wall)
        ],
    )
)

solvers = (
    T = SolverSetup(
        solver         = Cg(),
        preconditioner = Jacobi(),
        convergence    = 1e-8,
        relax          = 0.8,
        rtol           = 1e-4,
        atol           = 1e-5
    )
)

schemes = (
    T = Schemes(laplacian = Linear)
)

runtime = Runtime(
    iterations=10,
    write_interval=10,
    time_step=1
)

config = Configuration(
    solvers=solvers,
    schemes=schemes,
    runtime=runtime,
    hardware=hardware,
    boundaries=BCs
)

GC.gc(true)

residuals = run!(model, config)

Results

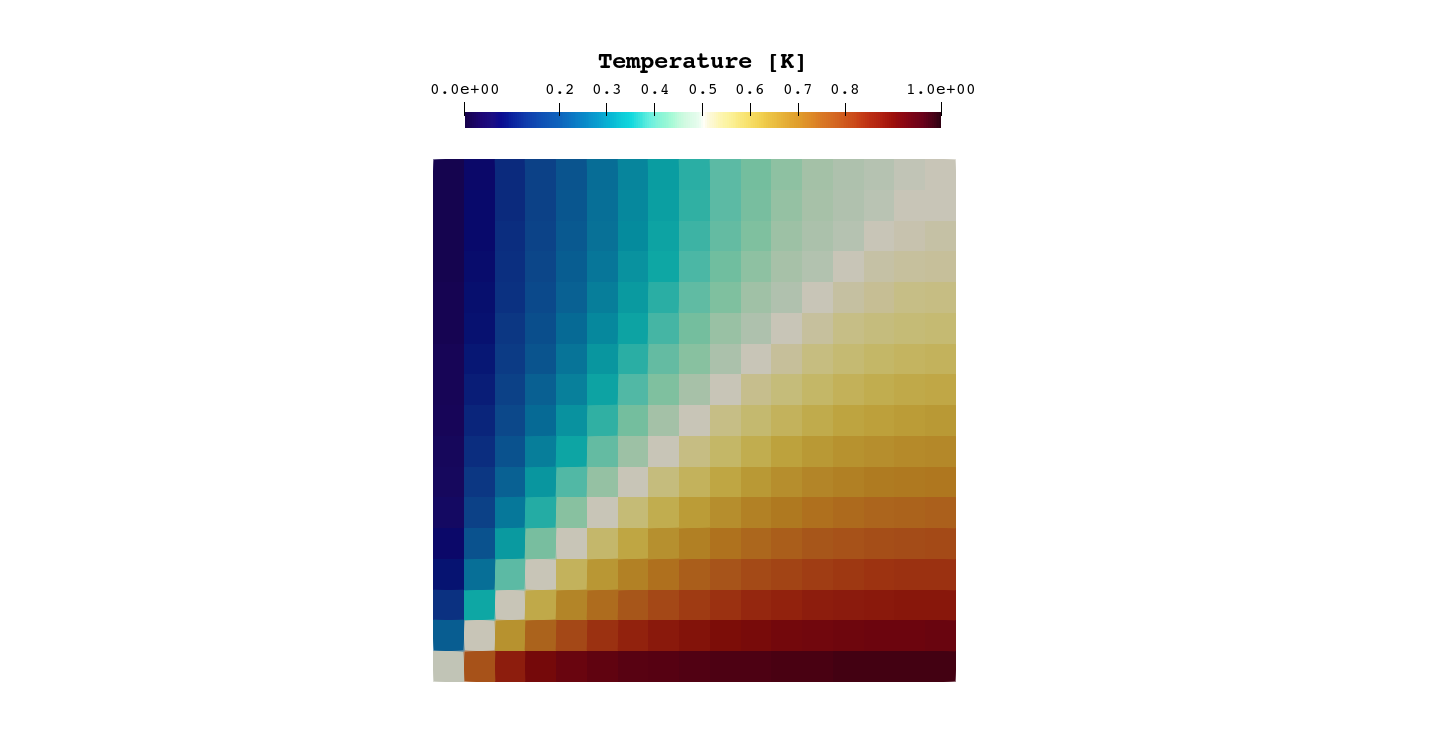

The temperature field shows diagonal line of constant temperature of 0.5 K, as expected:

Material Properties

If time term is set to be transient, the solver expects not only conductivity k, but also density ρ and specific heat c_p values to be passed. Example:

solid = Solid{Uniform}(k=54.0, rho=7850.0, cp=480.0)

For higher fidelity simulations, NonUniform regime is recommended. It requires density and predefined material to be passed:

solid = Solid{NonUniform}(material=Aluminium(), rho=2700.0)

This will ensure that the solver computes k and cp for each cell as a function of temperature. The general form of the equation for both coefficients is:

$\log(k) = a + b\log(T) + c \log(T)^2 + d \log(T)^3 + e \log(T)^4 + f \log(T)^5 + g \log(T)^6 + h \log(T)^7 + i \log(T)^8$

where a, b, c, d, e, f, g, h, and i are the fitted coefficients, and T is the temperature of a cell.

Currently, 3 material models are pre-defined: Steel(), Aluminium(), and Copper(). The coefficients for those materials were taken from Cryogenic Material Properties Database by Marquardt (2002), and work well for temperatures between 4 and 300 Kelvin. A custom material can also be defined:

# Define your custom coefficient vectors for k and cp:
k_coeffs = MaterialCoefficients(
    c1=-1.4087, c2=1.3982, c3=0.2543, c4=-0.6260, c5=0.2334,
    c6=0.4256, c7=-0.4658, c8=0.1650, c9=-0.0199
)
cp_coeffs = MaterialCoefficients(
    c1=22.0061, c2=-127.5528, c3=303.6470, c4=-381.0098, c5=274.0328,
    c6=-112.9212, c7=24.7593, c8=-2.239153, c9=0.0
)

# Pass them instead of `material`:
solid = Solid{NonUniform}(k=k_coeffs, cp=cp_coeffs, rho=7850.0),

NonUniform Results

The following settings were changed for this NonUniform configuration:

grid = "finer_mesh_laplace.unv"

model = Physics(
    time = Transient(),
    solid = Solid{NonUniform}(material=Aluminium(), rho=2700.0),
    energy = Energy{Conduction}(),
    domain = mesh_dev
    )

left_wall_temp = 10.0
bottom_wall_temp = 20.0

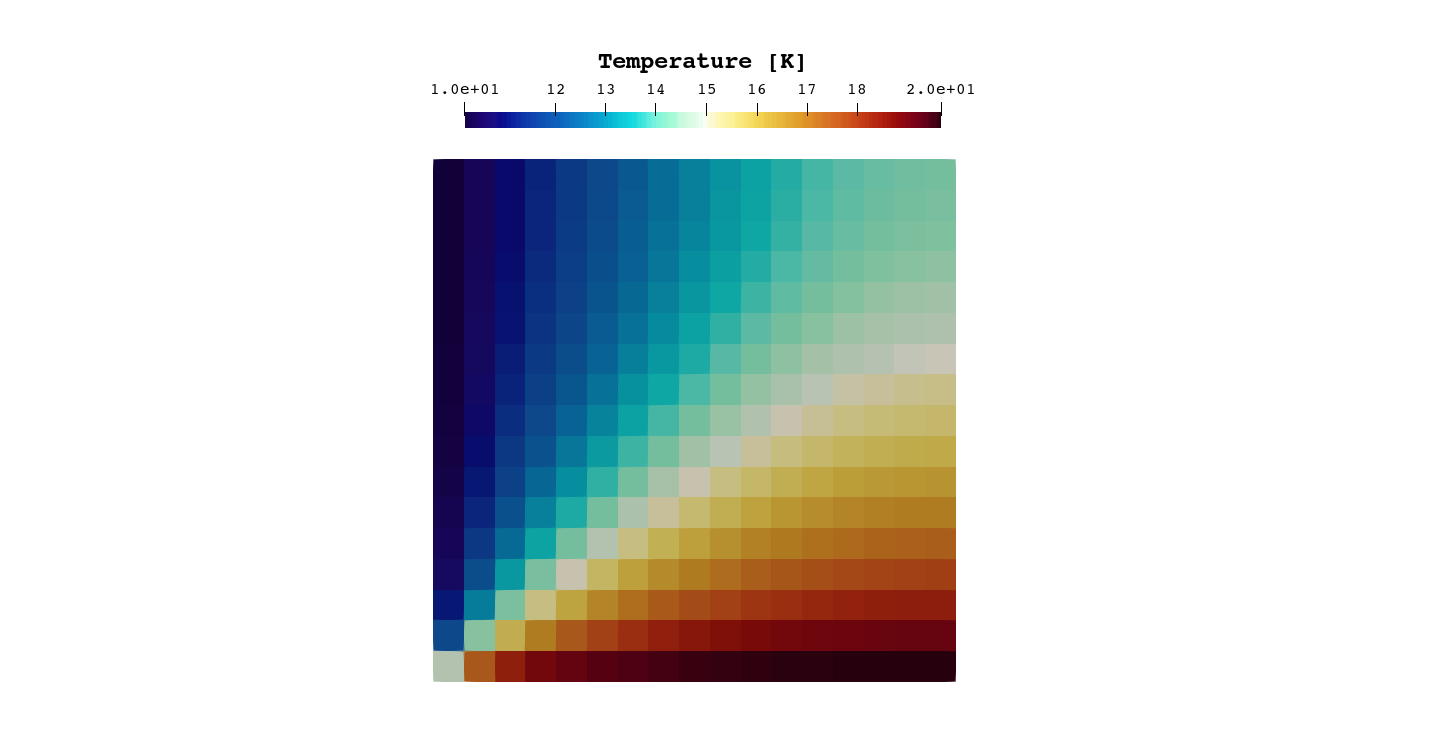

The difference compared to Uniform solution with constant properties can be clearly seen. Temperature distribution in cryogenic range is more complex and becomes increasingly non-linear the lower you go. In fact, setting boundary conditions to 0 and 1 Kelvin as in previous case would result in divergence, which is a more realistic result considering that 0 K boundary would violate the third law of thermodynamics.
