Verification: 2D incompressible backward-facing step

Introduction


The correct implementation of the laminar solver in XCALibre.jl has been verified by quantitatively comparing results with those obtained with OpenFOAM. The simulation set up and mesh file used to run the simulation with XCALibre.jl are available in this repository.

Simulation setup



using XCALibre
# using CUDA # Uncomment to run on NVIDIA GPUs
# using AMDGPU # Uncomment to run on AMD GPUs

grids_dir = pkgdir(XCALibre, "examples/0_GRIDS")
grid = "backwardFacingStep_10mm.unv"
mesh_file = joinpath(grids_dir, grid)

mesh = UNV2D_mesh(mesh_file, scale=0.001)

# Select backend and setup hardware
backend = CPU()
# backend = CUDABackend() # ru non NVIDIA GPUs
# backend = ROCBackend() # run on AMD GPUs

hardware = Hardware(backend=backend, workgroup=1024)
# hardware = Hardware(backend=backend, workgroup=32) # use for GPU backends

mesh_dev = mesh # use this line to run on CPU
# mesh_dev = adapt(backend, mesh)  # Uncomment to run on GPU

velocity = [1.5, 0.0, 0.0]
nu = 1e-3
Re = velocity[1]*0.1/nu

model = Physics(
    time = Steady(),
    fluid = Fluid{Incompressible}(nu = nu),
    turbulence = RANS{Laminar}(),
    energy = Energy{Isothermal}(),
    domain = mesh_dev
    )

BCs = assign(
    region=mesh_dev,
    (
        U = [
            Dirichlet(:inlet, velocity),
            Extrapolated(:outlet),
            Wall(:wall, [0.0, 0.0, 0.0]),
            Wall(:top, [0.0, 0.0, 0.0])
        ],
        p = [
            Extrapolated(:inlet),
            Dirichlet(:outlet, 0.0),
            Wall(:wall),
            Wall(:top)
        ]
    )
)

schemes = (
    U = Schemes(divergence = Linear),
    p = Schemes() # no input provided (will use defaults)
)

solvers = (
    U = SolverSetup(
        solver      = Bicgstab(), # Options: Gmres()
        preconditioner = Jacobi(), # Options: NormDiagonal()
        convergence = 1e-7,
        relax       = 0.7,
        rtol = 1e-4,
        atol = 1e-10
    ),
    p = SolverSetup(
        solver      = Cg(), # Options: Cg(), Bicgstab(), Gmres()
        preconditioner = Jacobi(), # Options: NormDiagonal()
        convergence = 1e-7,
        relax       = 0.7,
        rtol = 1e-4,
        atol = 1e-10
    )
)

runtime = Runtime(iterations=2000, time_step=1, write_interval=2000)
runtime = Runtime(iterations=1, time_step=1, write_interval=-1) # hide

config = Configuration(
    solvers=solvers, schemes=schemes, runtime=runtime, hardware=hardware, boundaries=BCs)

initialise!(model.momentum.U, velocity)
initialise!(model.momentum.p, 0.0)

residuals = run!(model, config);

Results

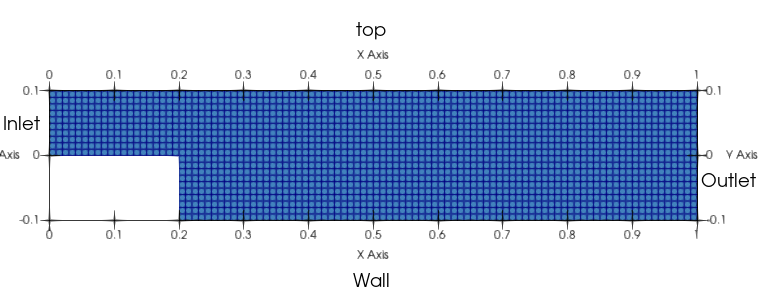

Domain and mesh

Simulation domain

OpenFoam solution

Simulation domain

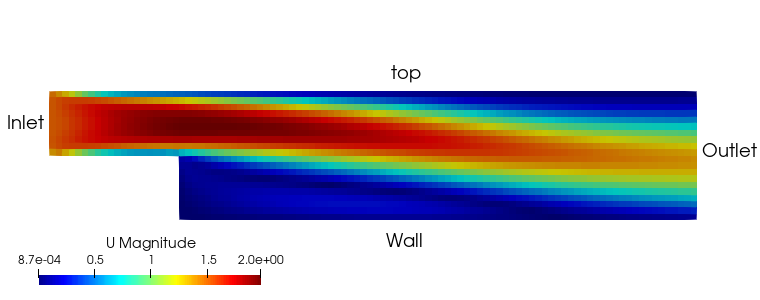

XCALibre solution

Simulation domain

Quantitative comparision

The figure below compares the results obtained with OpenFOAM and XCALibre.jl. The profiles are extracted along the y-direction at x = 0.5 m. Comparison with OpenFOAM
